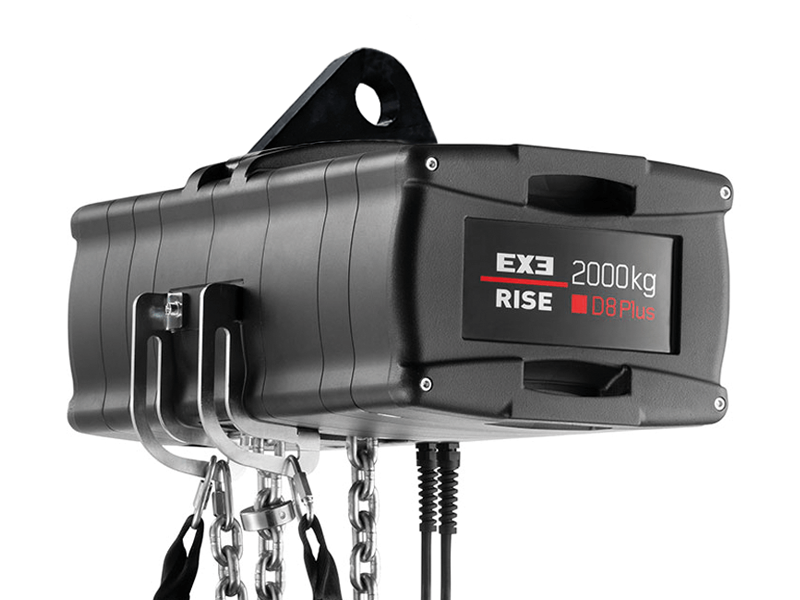

EXE RISE D8+ 2000KG HOIST LVC – 30M HOL

Day Price: £250
Week Price: £375

The Exe Rise 2000kg gives you serious lifting capacity with a single fall chain, avoiding the risk of unintentional twist for safer and more reliable operation. The single fall also results in a 4m/m lift speed. These motors come equipped with the optional internal chain encoders that interface directly with the Kinesys digihoist control systems to give accurate data on lift height as well as the ability to program moves & stop points.

These motors have a swivel hook both on the body and chain and for increased safety and reliability the clutch is positioned on the motor shaft in front of the motor assembly, outside of the load path. A custom chain-bag guide allows the motor to be used in self climbing orientation or motor up as required. For smaller lifts LUX Technical also hold EXE motors in a range of other sizes.

With a 2T capacity and D8+ 8:1 safety factor and an 11x31mm chain this motor is ideal for larger lifts such as big LED walls, larger line-array PA systems and stage roof systems. They have an IP55 rating as standard and can also be supplied with rain jackets for extra protection. All EXE motors at LUX are the LVC (low voltage control) versions and our motor control equipment is from Kinesys and EXE. LUX Technical specialise in the hire of equipment and supply of production services to the event industry. we cover audio, lighting video, LED walls, rigging, set and staging.

EXE Webpage

  • Chain encoder for greater accuracy and functionality
  • 30m HOL
  • Motor down or motor up orientation
  • D8+ rating
  • 2000kgs (2T) WLL
  • 4m per minute lift speed
